After two decades of fabricating racking beams, we see the same question come up: should you pay extra for box-section beams, or will standard C-section profiles handle your loads? The answer depends on your actual pallet weights, span distances, and how much deflection your operation can tolerate.

How Box-Section and C-Section Beams Actually Perform

The shape difference is straightforward — C-section beams are open channels that look like the letter C when you view them end-on. Box-section beams are closed, rectangular tubes. This closed shape gives box-section beams much higher resistance to twisting and better load distribution across the beam length.

In our fabrication workshop, we see the performance difference clearly. A 2400mm box-section beam rated for 2000kg per pair will deflect roughly 30-40% less than an equivalent C-section beam under the same load. That matters when you're storing heavy SKUs like paper rolls, industrial chemicals, or automotive components where even small deflection can cause pallet instability.

We typically recommend C-section beams for standard warehouse operations — FMCG distribution, electronics, textiles — where pallet loads stay under 1000kg and spans don't exceed 2700mm. The open profile provides adequate strength for these applications at a lower material cost.

When We Specify Box-Section Beams

We switch to box-section profiles when three conditions align: heavy loads, long spans, or strict deflection requirements. On one of our recent Jurong installs, the client needed 3000mm spans for 1800kg chemical drums. C-section beams would have met the load rating but deflected enough to create pallet overhang issues. Box-section beams kept deflection within acceptable limits.

Manufacturing facilities often require box-section beams because their storage patterns create concentrated loads. When you're storing steel coils, machinery components, or bulk raw materials, the extra rigidity prevents the beam sag that can jam automated retrieval systems or create safety concerns.

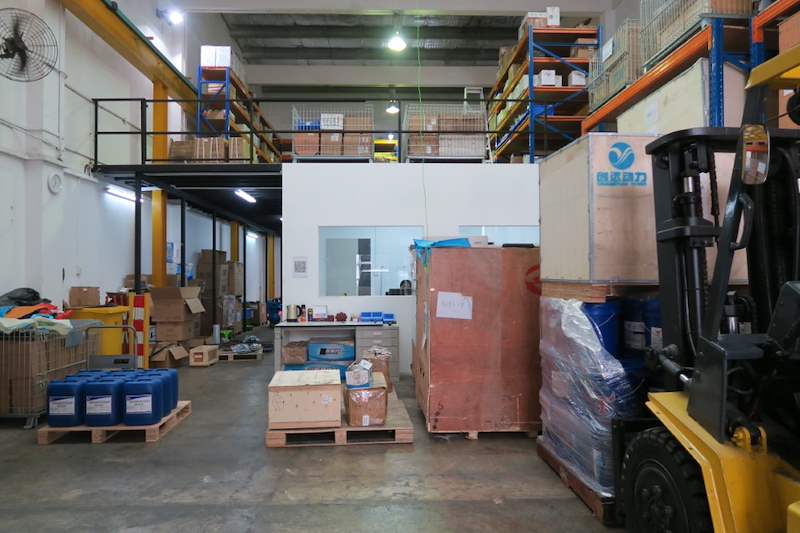

We also specify box-section beams for mezzanine floor supports where deflection affects the floor above. A sagging beam under mezzanine decking creates uneven surfaces that impact forklift operation and can stress the decking connections.

The Real Cost Trade-off

Box-section beams typically cost 20-30% more than equivalent C-section profiles, but that premium often makes sense when you factor in the total system cost. If C-section beams require closer upright spacing to control deflection, the additional uprights and bracing can cost more than upgrading to box-section beams with standard spacing.

We calculate this trade-off during our site surveys. For a 12-bay run storing 1500kg pallets, going from 2700mm to 2400mm bay spacing to accommodate C-section deflection limits means two additional upright frames plus extra bracing. The cost of those components often exceeds the premium for box-section beams.

Maintenance costs differ too. Box-section beams maintain their load capacity better over time because the closed profile resists denting and edge damage that can reduce C-section beam strength. In high-traffic areas where forklift contact is likely, this durability advantage adds value.

Load Calculations and Deflection Limits

We size beams based on your actual pallet loads, not catalogue maximums. Australian Standard AS4084 specifies deflection limits for racking beams — typically L/200 for the span length under working loads. A 2400mm beam should deflect no more than 12mm at rated load.

C-section beams often hit this deflection limit before reaching their ultimate load capacity. Box-section beams typically reach their load limit first, giving you better utilisation of the beam's structural capacity. This means you can often use lighter box-section beams than the C-section equivalent for the same application.

Our load calculations factor in pallet overhang, uneven loading, and dynamic effects from forklift placement. These real-world conditions increase deflection beyond the static calculations, particularly with C-section profiles that have less torsional stiffness.

What about C-section beams vs rolled steel beams?

We use rolled steel beams (I-beams, universal beams) for the heaviest applications where even box-section cold-formed profiles aren't adequate. These are hot-rolled sections with superior load capacity but much higher cost. Most warehouse racking doesn't require this level of strength.

Do box-section beams work with all upright systems?

Box-section beams require compatible end-plates and safety locks. We design our beam end-plates to work with standard upright profiles, but some imported systems have proprietary connections that limit beam profile options. We check compatibility during the design phase.

How do you prevent deflection in existing C-section beam systems?

We can retrofit additional beams to reduce span lengths, or add intermediate supports where floor space allows. Sometimes upgrading just the most heavily loaded bays to box-section beams solves deflection issues without replacing the entire system.

What deflection is too much for safe operation?

Beyond the AS4084 limits, we watch for deflection that creates pallet instability or interferes with forklift operation. If operators report difficulty placing or retrieving pallets, or if you see pallets sliding toward the aisle, the deflection has exceeded practical limits regardless of structural safety.

Can you mix beam types in the same racking system?

Yes, we often use box-section beams in heavily loaded bays and C-section elsewhere in the same installation. The upright frames and safety systems remain compatible as long as the beam end-plates match the upright profile.

Getting beam selection right from the start saves retrofit costs later. We size beams based on your actual loads and layout requirements, not generic specifications. WhatsApp us at https://wa.me/6591072601 to discuss your specific application.
