Pallet racking exists because most goods arrive on a pallet: a flat base, a known footprint, a load that sits still. A cable drum has none of those properties. Neither does a steel coil, a roll of membrane, a reel of hose or a spool of wire.

Yet the first thing almost every warehouse does with drums is put them on standard selective racking, or stand them on the floor and lean them against each other. Both work until the day they do not, and the failure mode of a round object weighing several hundred kilograms is worse than the failure mode of a box.

What makes a drum different from a pallet

• It is round, so it wants to roll. Everything else on this list follows from that. Nothing about a beam level stops a cylinder that has started to move.
• It loads the beam through two narrow contact lines, not a flat base. A pallet spreads its weight across the full width of the beam. A drum flange concentrates it. Catalogue beam capacities are quoted for a uniformly distributed load, and a drum is not one — an argument we make in general terms in beam deflection and catalogue ratings.
• The weight is rarely stated, and it changes. A drum that has been part-drawn weighs less than it did last month, and the label on the flange usually describes what was on it when it left the factory.
• It has to be handled by the middle, not the base. Whether a drum is lifted on a shaft, on a spindle, by a drum handler on a forklift or by a crane changes what the storage has to allow around it.
• You often need the one at the back. Cable is drawn to length. That means the same drum is retrieved, unwound and returned repeatedly, which is a completely different access pattern from a pallet that is picked once and gone.

The same list, with different words, describes steel coils, membrane rolls, carpet and vinyl rolls, hose reels and cable trays. Any load that is round, long or both breaks the assumptions that pallet racking was designed around.

What goes wrong in practice

We are usually called after one of four things has happened.

Drums stored on their side on standard beams. They are chocked with timber offcuts on the day of delivery, and the chocks migrate. Once a drum shifts, it either wedges against its neighbour — making both impossible to retrieve without moving everything — or it does not, and it comes off the beam.

Drums stacked on the floor two or three high. The stack is stable while it is complete and unstable the moment somebody takes one out of the middle, which is exactly what the operation needs to do.

Everything stored on end. Standing a drum on its flange is stable and space-efficient, and it means the cable cannot be drawn without laying the drum down again — so it is only correct where drums are stored full and dispatched whole.

The rack was sized for the drums they had. A new supplier, a larger drum diameter, and half the storage no longer fits. Diameter, not weight, is what usually forces the redesign.

The options, and what each is actually for

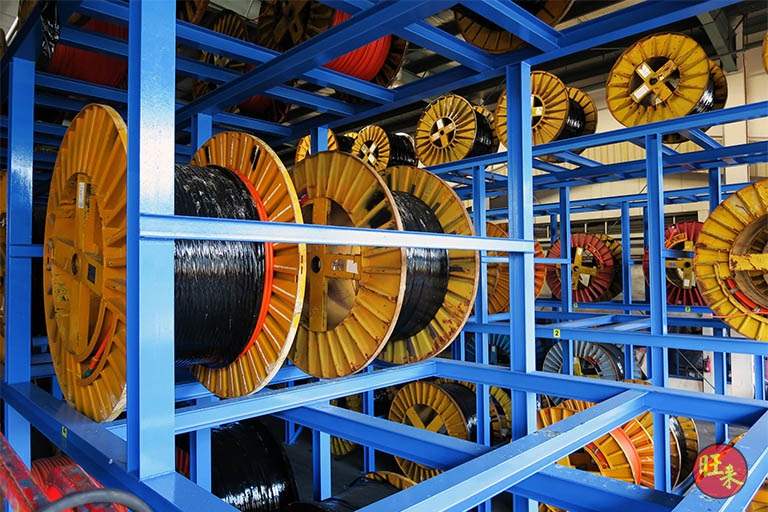

Purpose-made drum racks. A frame that carries each drum on a shaft or in a cradle so it is held by its core rather than resting on its circumference. The drum cannot roll, it can be unwound in place if the design allows for it, and each position is independent — you take the one you want without disturbing the rest. This is the right answer where drums are drawn from rather than dispatched whole, and it is the configuration shown in the photograph with this article: a purpose-built multi-tier frame carrying loaded cable drums in a Singapore warehouse, fabricated for that operation.

Cantilever racking. Arms projecting from a central column, with no front upright in the way. This is the standard answer for long loads — pipes, timber, profiles, rolled steel — and it works for rolls and coils where they can rest across two arms with a positive stop at the arm end. Cantilever is quoted against the actual load case rather than listed: the arms are rated for the load you are putting on them, at the reach you need, and there is no honest list price until both are known. The load-case argument is in long-span shelving and the cantilever load case.

Heavy-duty shelf levels with fixed cradles. Where drums are stored horizontally but only a few sizes exist, a shelf level with fabricated cradles welded to suit those diameters is simple and robust. It stops working the moment the drum sizes change, so it belongs in operations where they will not.

Vertical storage with restraint. Drums on end, in a frame that stops them tipping, where the drums leave whole. Space-efficient and the cheapest of the four — and completely wrong for an operation that draws cable.

The questions that decide it

1. Do you draw from the drum, or dispatch it whole? This one answer eliminates half the options immediately.
2. What is the largest diameter, and the heaviest unit — today and after the next supplier change? Design to the largest, not the average.
3. How is it handled? A forklift with a drum clamp, a shaft and a lifting beam, a crane, or two people and a ramp are four different sets of clearances.
4. How often is each one moved? A drum touched weekly needs its own position. A drum touched once a year does not.
5. What is the floor rated for, and where are the loads landing? Round loads concentrated on a few frames put point loads into the slab. On an upper floor this is the governing question rather than a detail — see racking a ramp-up warehouse.
6. What happens if one moves? If the honest answer is that it would roll into an aisle, the design is not finished.

Why this is usually a fabrication job rather than a catalogue job

There is no standard drum. Diameter, flange width, core size and weight all vary by what is wound on them and by who supplied them, and a warehouse typically holds several families at once.

We fabricate the great majority of our racking in Singapore, which is what makes this kind of work practical: cradle spacing set to your actual drum diameters, shaft positions to your handling method, bay widths that suit the aisle you have rather than the aisle the catalogue assumed. Steel is PSB-tested with traceable mill certificates, and load cases are calculated against your real loads rather than taken off a chart — the same approach described in custom racking design.

Where a structure is large enough or is combined with a mezzanine or shelter, submission coordination — BCA and SCDF, with PE-stamped calculations — is handled in-house as part of the job rather than left to you to arrange.

How we would approach yours

A site survey first: the drums you actually hold, measured rather than described; the handling equipment and its clearances; the aisle and the floor; and how often each item moves. Then a 2D and 3D layout showing positions, loads and access, so the trade-offs are visible before any steel is cut.

If the honest answer is that standard selective racking with a properly designed cradle detail will do the job, we will tell you that, because it is cheaper for you and quicker for us. What we will not do is put round loads on flat beams and call it storage.

Tell us what you are storing

Send us what the loads are, the largest diameter and the heaviest unit, roughly how many you hold, and whether they are drawn from or dispatched whole. That is enough for a first, honest conversation about what the storage should look like.
