A racking layout gets designed for one thing: how many pallets fit. That is the number the operator asked for, it is the number the quote is judged on, and it is usually the number the drawing is optimised around.

Then the layout goes for approval, or the fire safety consultant walks the floor, and a run has to move. Sometimes several runs. And because racking is a grid, moving one run moves everything downstream of it — which is how a layout loses bays late, after the steel has been priced and occasionally after it has been ordered.

The detail that causes it is almost always the same one: the people leaving the building.

Two different things sharing the same floor

A warehouse aisle has two jobs and they are designed by different logic.

Its storage job is to let a truck reach a pallet. That sets aisle width — roughly 3.5 to 4.0 metres for conventional trucks, or 1.6 to 1.8 metres in a very narrow aisle system with wire or rail guidance. Our note on turning radius and aisle width covers how that figure is arrived at.

Its life safety job is completely separate: it has to let a person on foot get out of the building, from wherever they are standing, by a route that stays available. That is not a function of what the truck needs. A dimension that works for a reach truck can still be unacceptable as part of an escape route, and a route that is fine on the drawing can be unusable in practice.

Designing only for the first job and hoping the second one comes free is what gets plans sent back.

What actually gets flagged

In practice the same handful of things come up, and none of them are exotic.

• A rack run built across a door. Obvious on site, easy to miss on a drawing where the door is a thin line on a wall elevation nobody printed.
• A dead-end aisle. A run closed at one end means a person at the far end has one way out, and that way out is past whatever is happening in the aisle. Dead ends are cheap to design accidentally, because closing an aisle end is often how you gain a bay.

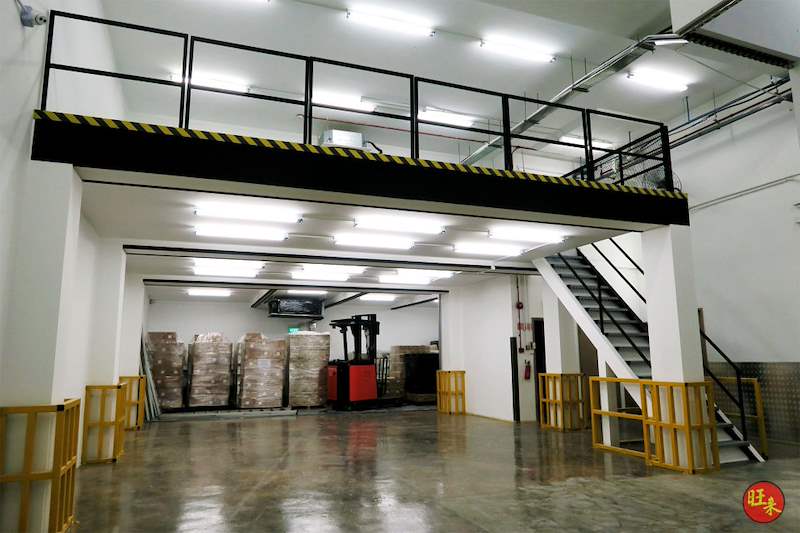

• Route continuity broken by a mezzanine. Adding a mezzanine changes both the escape route and the approval picture — mezzanines above certain areas, or carrying assembly use, need fire safety endorsement with a stamped submission package, and the stairs that serve it are part of the escape provision rather than an accessory to it.
• A door that opens against the racking. A door that cannot swing fully is a door that fails when a crowd is behind it.
• The route that exists on the drawing but not on the floor. An escape route occupied by shrink-wrapped pallets, a battery charger and three cages is the single most common real-world failure, and it happens in month four, not week one.

Why the racking pays for it and not the building

Escape provision is fixed by the building. The exit doors are where they are, the fire stairs are where they are, and the layout is set out from the column grid rather than from the walls. Ramps, lift cores and fire stairs occupy area that an operator instinctively counts as storage, and they are not negotiable.

So when a route and a rack run compete, the rack run moves. That is worth internalising before the layout is drawn, because it means the honest sequence is: mark the exits and the routes between them first, then fill what is left with racking. Almost every layout we are asked to review has been done in the opposite order.

Fire protection reaches into the racking itself

Escape routes are the visible half. The other half sits inside the runs, and it also constrains the layout.

Where in-rack sprinklers are required by the fire protection design, the pipework and heads occupy defined levels within the racking, so beam elevations can no longer be set purely by pallet heights. And the decking choice stops being free: wire mesh lets sprinkler discharge pass down through the levels, while steel panel and chipboard do not — a rack of solid decks acts as a row of umbrellas over the goods below.

Even without in-rack protection, clearance below the ceiling sprinklers sets the top beam level, which sets the level count, which sets the economics of the whole layout. Clear height comes from the lowest obstruction, not from the roof.

Design it in, and it costs almost nothing

The reason to raise this early is that on a blank floor it is nearly free. Routes are placed where the aisles were going to be anyway; a run is shortened by a bay rather than deleted; a cross-aisle lands where the column grid already wanted it.

Discovered late, the same requirement costs a redesign, a resubmission, and steel that has already been cut to length. That gap — free at design stage, expensive at approval stage — is the entire argument for putting the exits on the first drawing.

What to have on the layout before it goes anywhere

1. Every exit door marked, with its swing shown. Not just the main roller shutter — the personnel doors people would actually use.
2. The route from the furthest working position to each exit, drawn as a line. If you cannot draw the line without crossing a rack run, that is the finding.
3. No dead-end aisles, or an explicit note where one is unavoidable so it can be assessed rather than discovered.
4. The mezzanine, its stairs and its landing, if there is one, shown as part of the route rather than as furniture.
5. Floor marking for the routes, so that what was designed is visible to the people who will later be looking for somewhere to put a pallet.
6. Who is submitting what. Racking work sits alongside building plan submission or notification depending on scope, and the boundary is worth settling before anyone assumes someone else is handling it.

And the part that is not a drawing

Every route on that layout has to still be a route in year three. That is a housekeeping discipline, not an engineering one, and it is the reason floor marking matters more than it looks: an unmarked route becomes storage within a month, and nobody involved will remember it was ever a route.

The same logic applies to load notices on the runs — the information has to be visible on the floor, not correct in a file.
